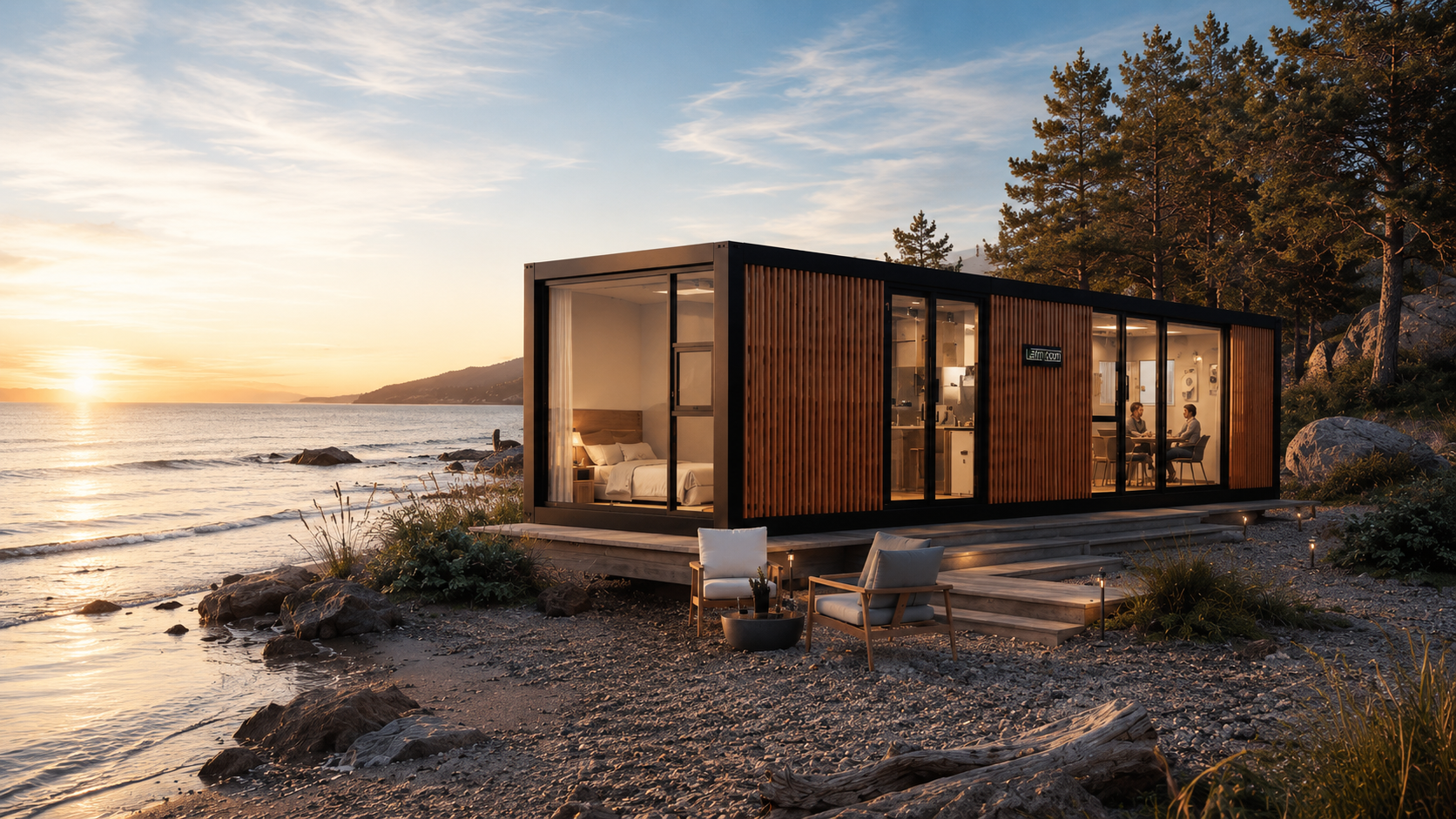

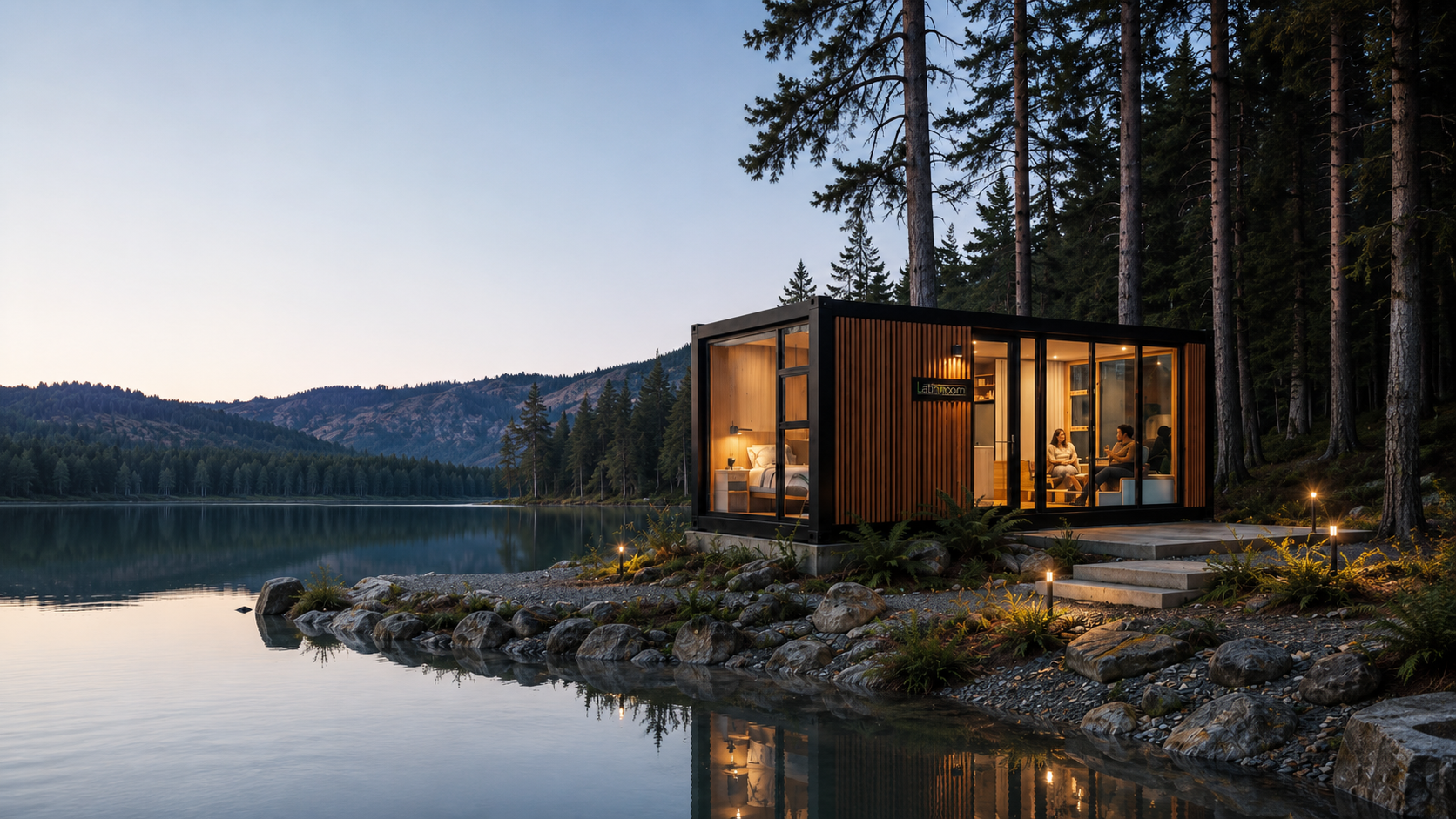

Luxury & Refined modules(LR)

The LR Series represents the latest advancement in modular design, seamlessly integrating the proven structural integrity of our flagship line. Its core features include zero on-site assembly, exceptional thermal regulation across varying temperatures, and superior sound insulation.
Experience the next generation of modular construction technology. The LR Series comprehensively resolves the industry-wide challenges of high labor costs and structural compromises. With precision factory prefabrication, outstanding thermal and acoustic performance, and a design philosophy that maximizes both space utilization and aesthetics, LR modular homes deliver an unparalleled return on investment for the tourism sector.
Furthermore, it offers a viable solution to global housing shortages. Addressing the pain points prevalent in developed nations—such as expensive labor, slow construction speeds, and difficult approval processes—LR products are delivered fully move-in ready. This allows for the rapid expansion of housing supply to effectively alleviate residential pressures.

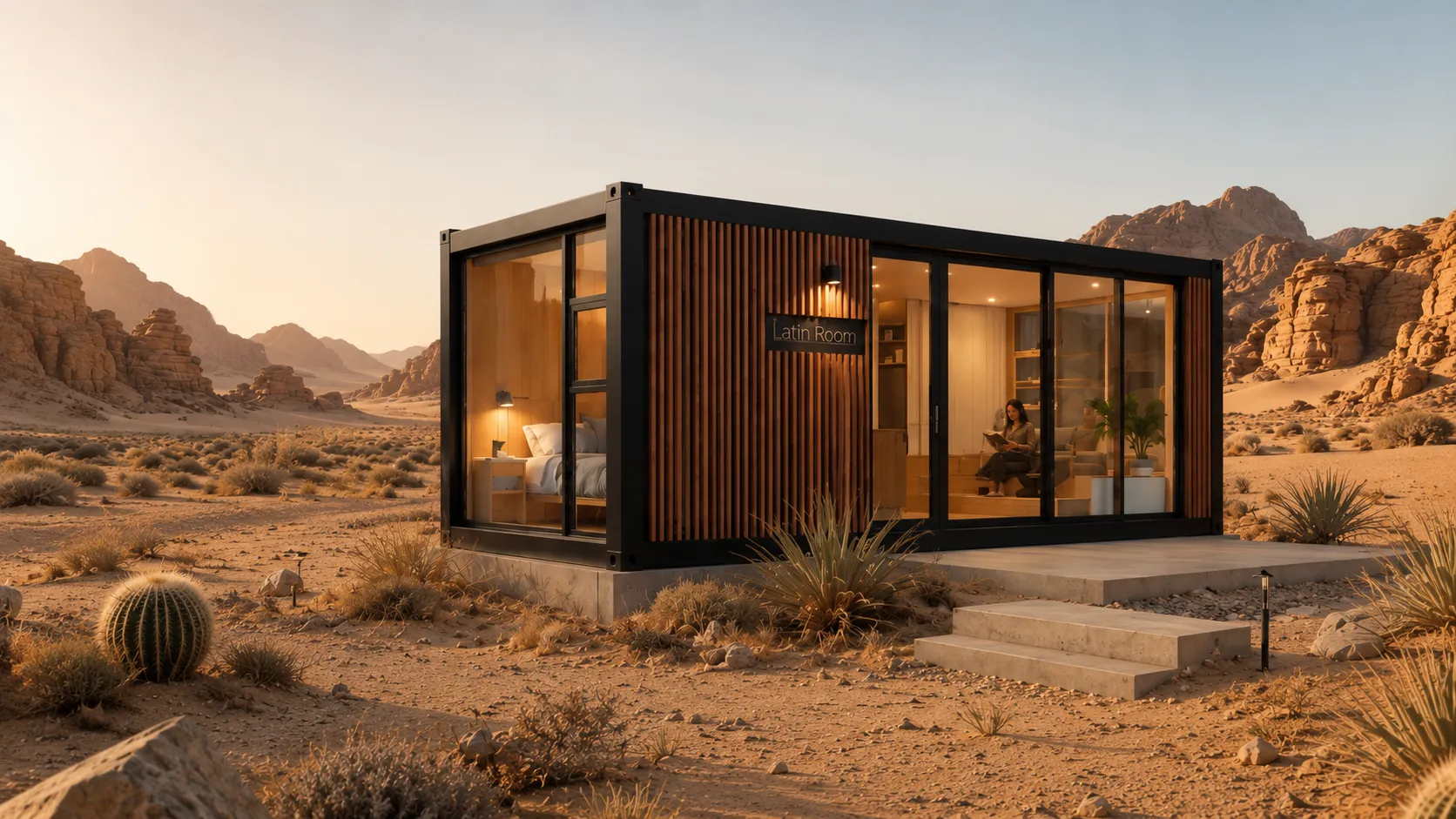

Luxury & Refined modules(LR)

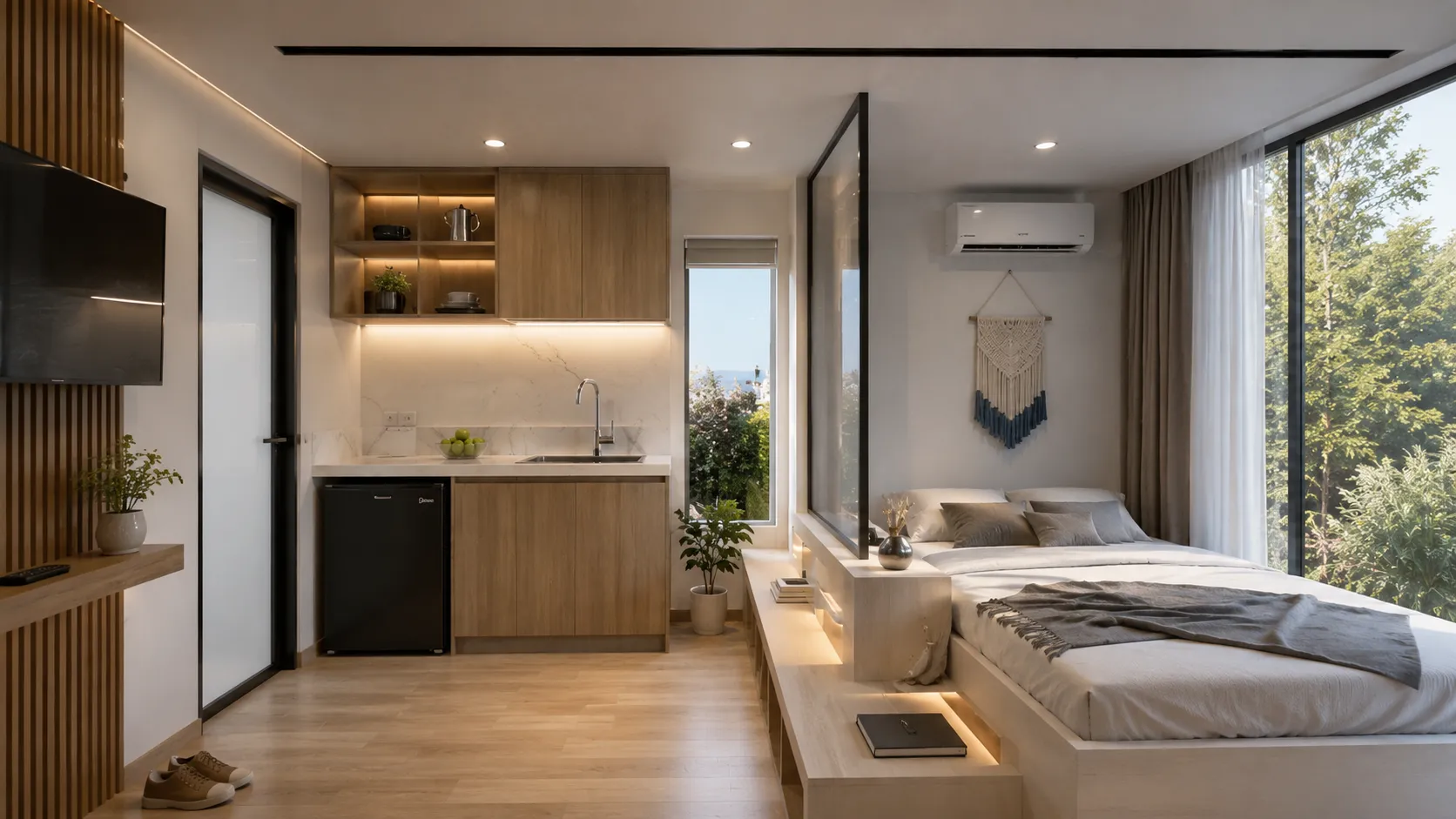

Luxury & Refined modules(LR)

Support hotline

Tel / Whatsapp:+86 18001125785 Email:chengdong@cdph.com.cn

Online Consultation

Product Introduction

"Focusing on the high-end demands of residential, commercial, and office sectors, we have launched the LR Series. This product strikes a balance between innovation, practicality, and user experience to create diverse spatial layouts. It features flexible modular and personalized designs that cater to the needs of various scenarios."

01

Complete Pre-construction Preparation

"Unlike traditional models, the LR arrives fully assembled and finished. This design significantly reduces the labor and time typically required for on-site assembly, ensuring a seamless installation process."

02

Enhanced Structural Integrity

"The LR features a fully welded main structure and roof made of 3.0mm SGH340 galvanized steel. It is engineered to withstand a roof live load of ≥1.0 kN/m² and a wind load of ≥120 kg/m². With superior waterproofing and excellent sound insulation, the LR creates a quiet and secure environment for use."

03

Optimized Thermal Efficiency

"We construct the walls using polyurethane (PU) foam with a U-value of approximately 0.30 W/(m²·K), and incorporate fiberglass insulation for the roof and floor, which has a U-value of around 0.40 W/(m²·K). This balanced design ensures superior temperature control while maintaining excellent cost-effectiveness."

04

High Durability

"With expert craftsmanship and carefully selected materials optimized for their intended environments, we ensure our products deliver exceptional structural strength and longevity across diverse conditions—from scorching heat to extreme cold. We also provide tailored solutions designed specifically for your unique projects."

05

Refined Aesthetics

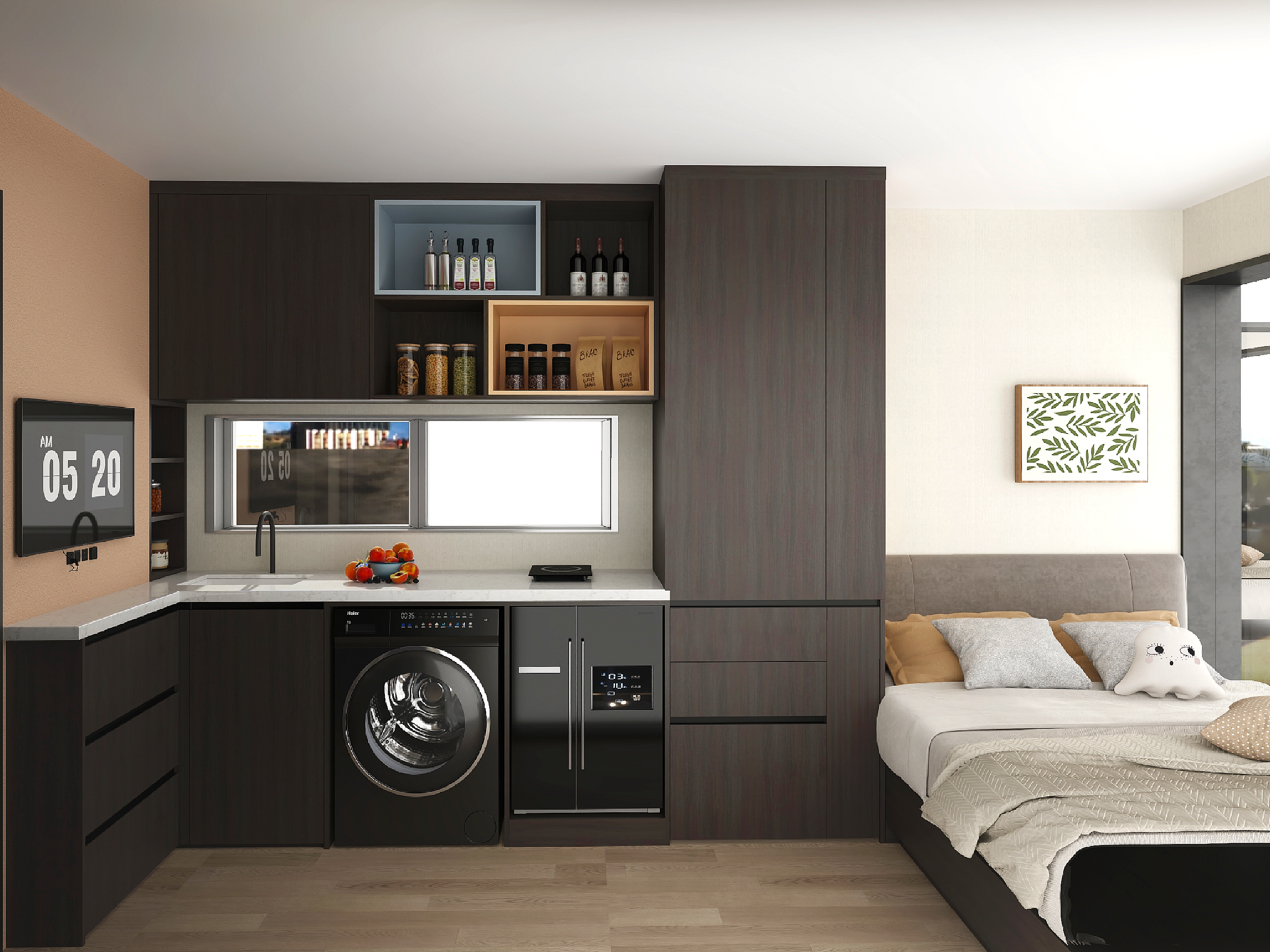

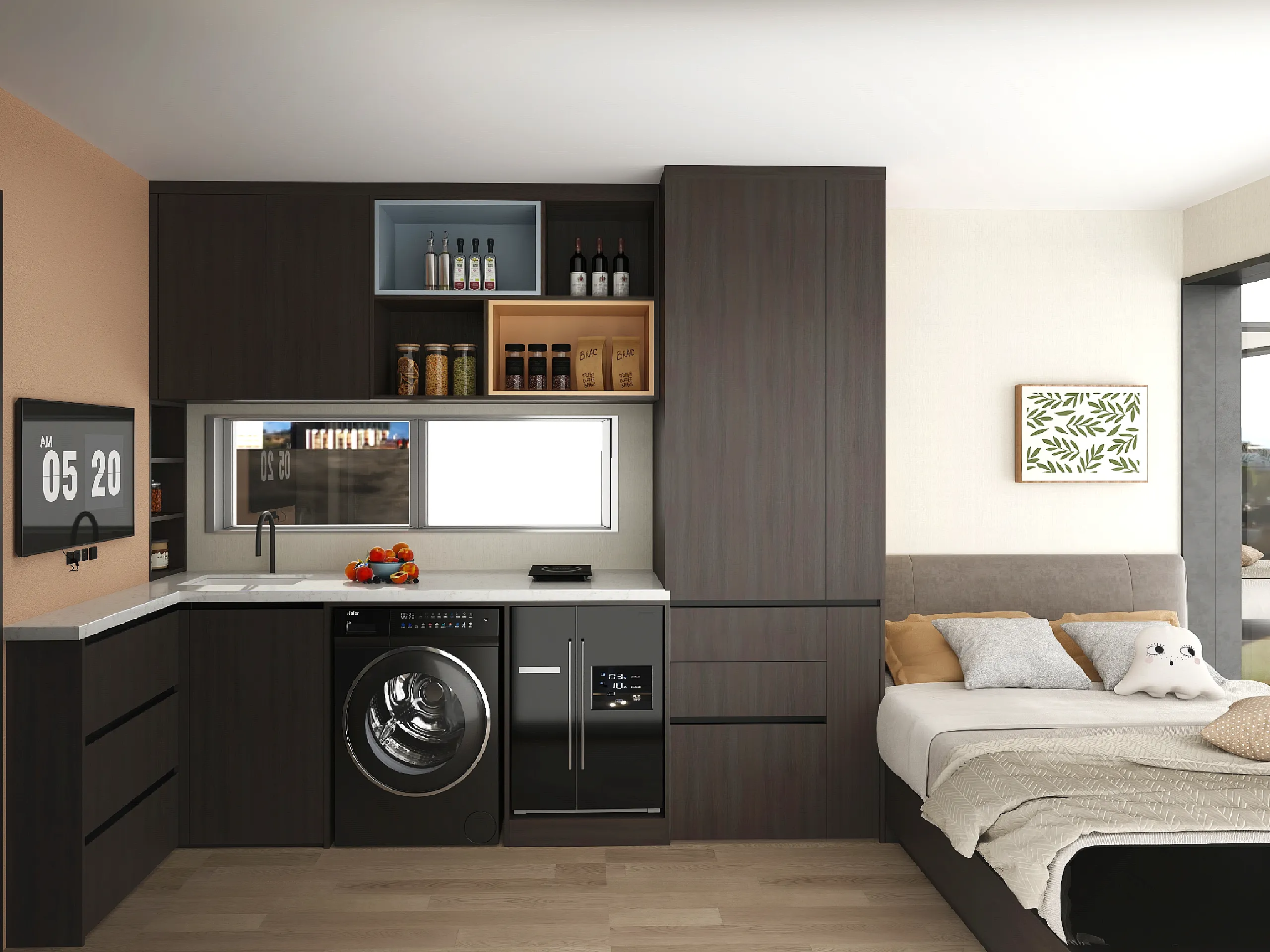

"In stark contrast to the industrial style of traditional shelters, the LR features concealed piping and electrical systems, unique finishes, and meticulously planned furniture layouts. Together, these elements create an elegant, modern, and comfortable ambiance."

Design Specifications

Product Type

"This is a standardized product featuring standard modular dimensions. With an entire housing unit as its basic element, it can be used individually but is not designed for high-rise stacking."

Unit Specifications

Standard Product:

Unit Length: 5800mm (Internal clear dimension: 5640mm)

Unit Width: 2250mm (Internal clear dimension: 2090mm)

Unit Height: 2500mm (Internal clear dimension: 2175mm)

Extended Product:

Unit Length: 11600mm (Internal clear dimension: 11450mm)

Unit Width: 2250mm (Internal clear dimension: 2090mm)

Unit Height: 2500mm (Internal clear dimension: 2175mm)

Design Parameters

Roof Live Load: 1.0 KN/㎡

Floor Live Load: 2.0 KN/㎡

Wind Load: 0.5 KN/㎡

Frame

Galvanized cold-rolled steel sections, factory prefabricated

Housing Insulation

Roof Insulation: 100mm glass wool

Floor Insulation: 100mm glass wool

Ceiling

Living area: Bamboo-wood fiberboard

Bathroom: Stone-plastic wall panel

Flooring

Flooring: SPC click flooring

Substrate: Cement fiberboard

Bottom board: Corrugated sheet

Water supply and electrical system

Factory prefabricated plumbing and electrical conduits

Scene Layout

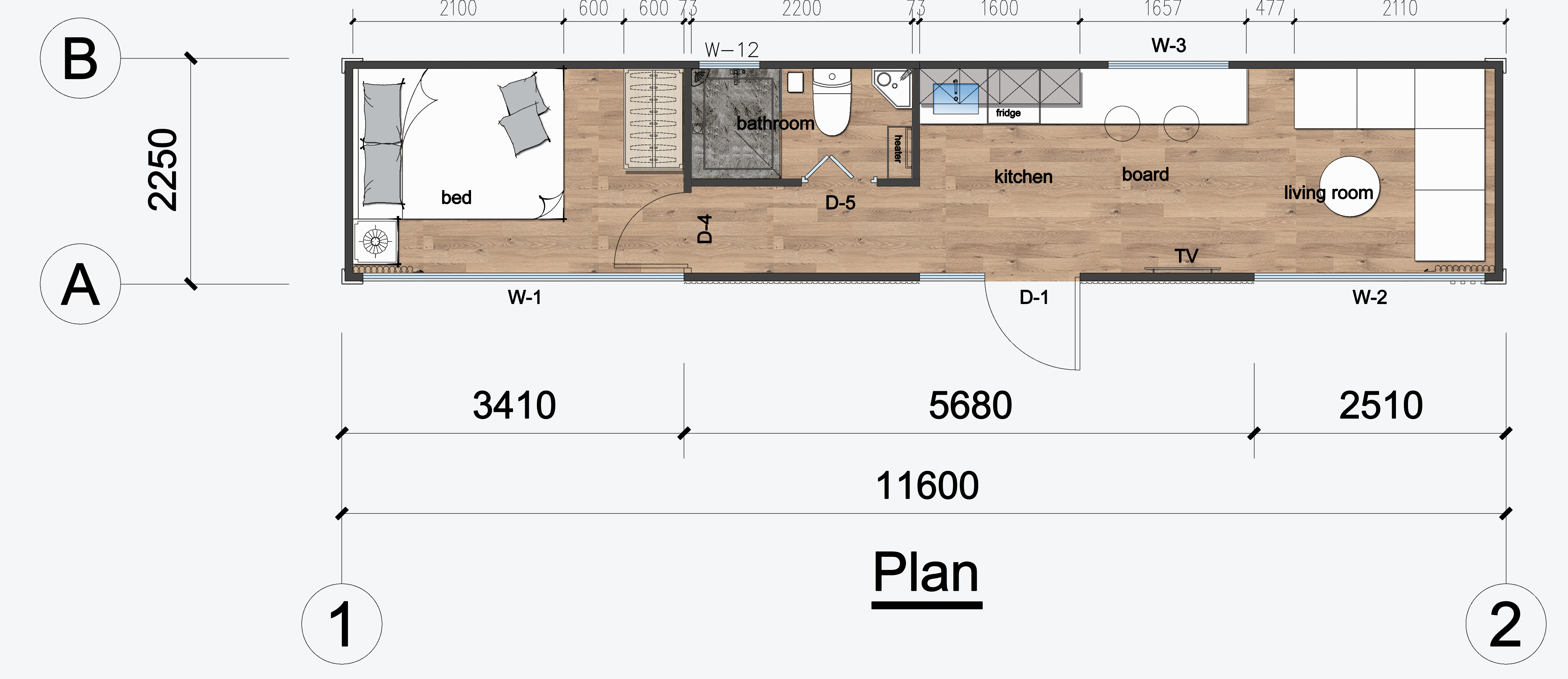

Accommodation Module 1

Accommodation Module 1

Accommodation Module 2

Accommodation Module 2
