Steel Structure

In the construction project of engineering camps, not only accommodation and office buildings are needed, but also some production buildings. Due to the relatively large self-weight of the traditional H-shaped steel structure, the long processing cycle, and the relatively high comprehensive cost of long-distance transportation. The R & D team of Chengdong Camp has developed a light steel structure that is cold-formed and can be mass-produced mechanically on the basis of the traditional portal frame. After several technical improvements, it has finally been finalized into our product introduction. At present, this product is widely used in large functional buildings such as workshops, storerooms, and restaurants in the construction of engineering camps.

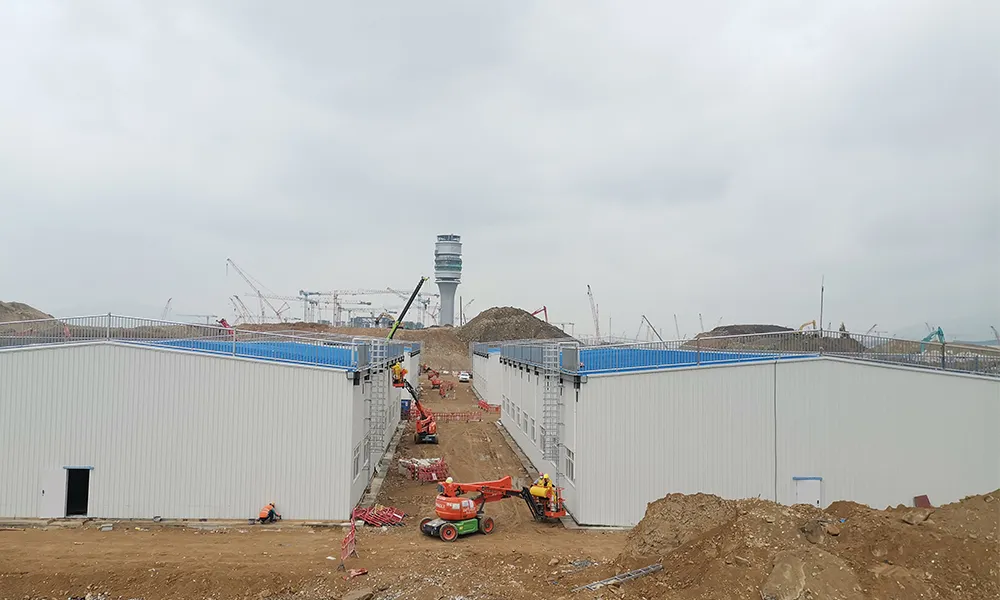

Steel Structure

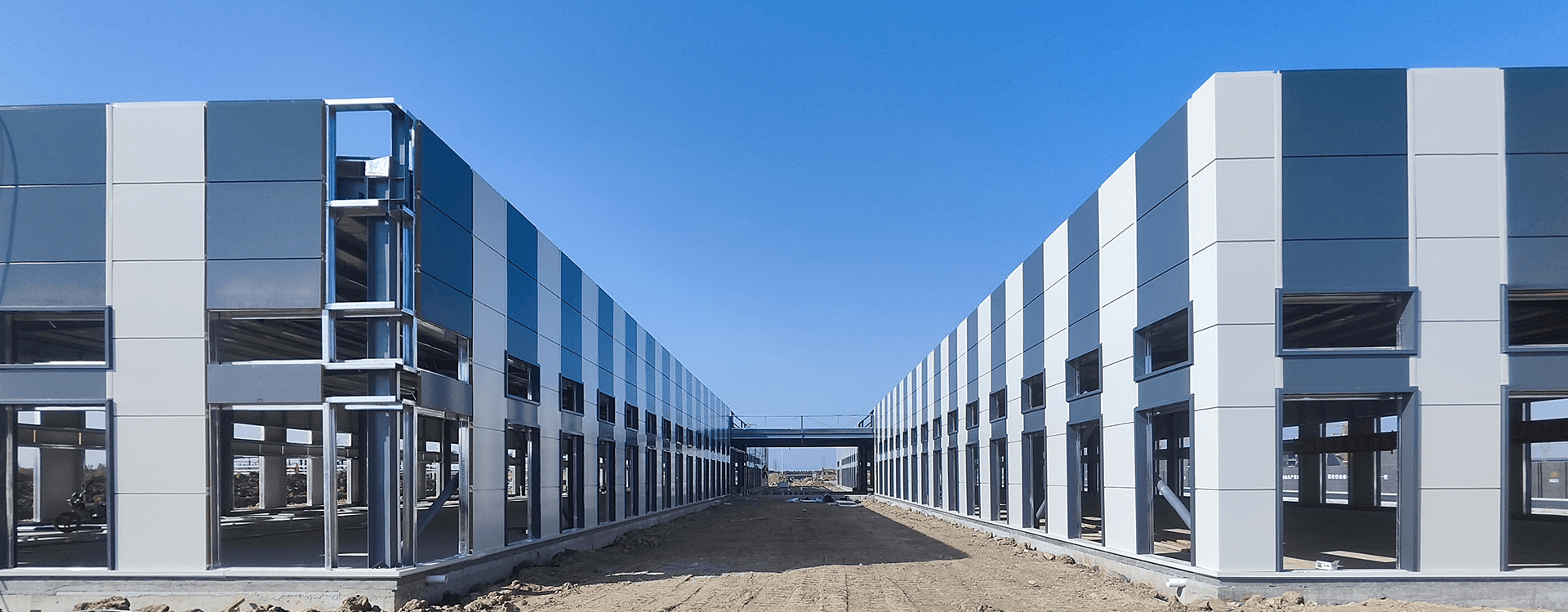

Steel Structure

Support hotline

Tel:4000-99-4000 Email:chengdong@cdph.com.cn

Online Consultation

Product Introduction

In the construction project of engineering camps, not only accommodation and office buildings are needed, but also some production buildings. Due to the relatively large self-weight of the traditional H-shaped steel structure, the long processing cycle, and the relatively high comprehensive cost of long-distance transportation. The R & D team of Chengdong Camp has developed a light steel structure that is cold-formed and can be mass-produced mechanically on the basis of the traditional portal frame. After several technical improvements, it has finally been finalized into our product introduction. At present, this product is widely used in large functional buildings such as workshops, storerooms, and restaurants in the construction of engineering camps.

01

Good anti-corrosion property

The structure is a galvanized structure, which greatly improves the moisture-proof and anti-corrosion performance.

02

Short construction period

It can be mass-produced mechanically with a short processing cycle; it can realize all-bolt assembly connection, resulting in a short installation period.

03

Low cost

The amount of steel used in the structure is low, the self-weight is light, the requirements for the foundation are low, and the disassembled parts can be packed in containers, which greatly saves the container volume.

04

Note

Product Introduction can not only be used as workshops and warehouses, but the improved product introduction can also be used as large offices and restaurants.

Design Description

Product Type

Standardized products with customizable design available.

House Specifications

Length: Designed according to the plate modulus, with recommended column spacing of 4m/6m.

Span: 12m/15m/18m. The recommended economical span is 18m, and the maximum shall not exceed 18m.

Eave Height: Designed according to the needs of actual functions, with the maximum not exceeding 6m.

Design Parameters:

Roof Live Load: 0.3 KN/m² (column spacing 6m), 0.5 KN/m² (column spacing 4m).

Wind Load: 0.45 KN/m² (column spacing 6m), 0.6 KN/m² (column spacing 4m).

Structure

Hot-dip galvanized cold-formed profiles

House Body Maintenance

Roof Panel: 75mm-thick fiberglass cotton / polystyrene color steel sandwich panel. Other thicknesses are available for optional configuration.

Wall Panel: 75mm-thick fiberglass cotton / polystyrene color steel sandwich panel. Other thicknesses are available for optional configuration.

Ceiling

No ceiling is standard. Mineral wool acoustic board ceiling or calcium silicate board ceiling for humid environments can be optionally configured.

Door

Composite panel sliding door with hanging rails. Others can be designed according to requirements.

Window

Plastic-steel windows / color steel windows. Others can be designed according to requirements.

Foundation

Reinforced concrete independent foundation.
